Description

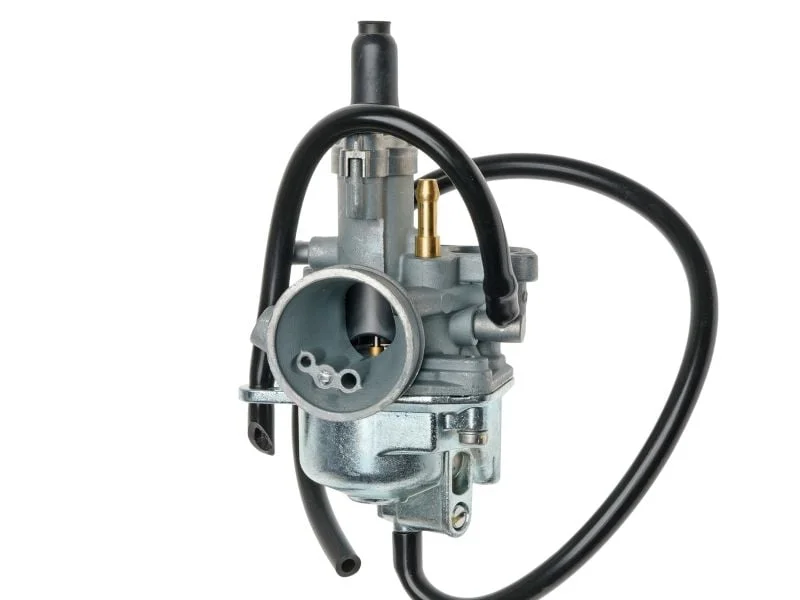

DellOrto 17.5mm PHVA carburetor

The DellOrto 17.5mm carburetor provides adequate internal cooling and good throttle response with a better and smoother updraft. The carburetor has a 38mm throat at the air filter.

When adjusting the nozzle size and mixture screw, it is recommended that the engine is warm. Therefore, you should at least drive for a ride of approx. 5 minutes. The DellOrto carburetor is also characterized by easy access to the nozzles in the sump.

Specifications:

• 17.5mm carburetor from DellOrto
• 35mm tightening diameter on air filter
• Incl screws, nozzles and throttle body
• Main nozzle size #90
• Idle nozzle size #35
• Without thread for gooseneck.

NOTE: Adaptation of the throttle cable may be necessary. This carburetor is for use with an automatic choke with 7mm choke piston, this is not supplied with the carburetor. See related products for more.
